JianShi (China) Drilling Tools Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | JSBIT |

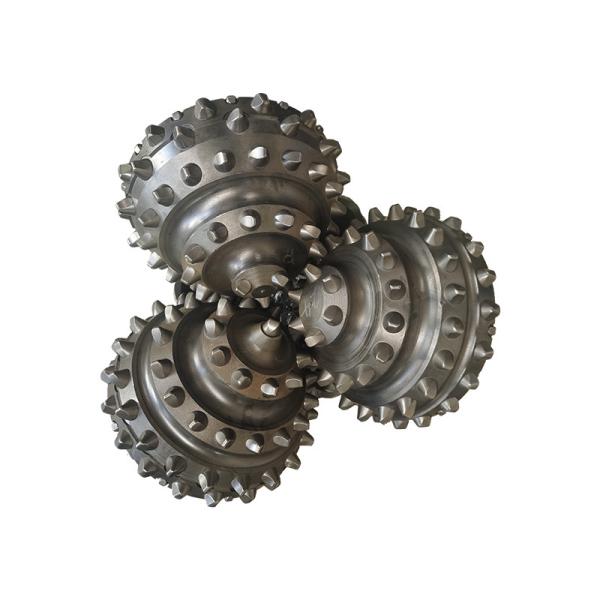

| Model Number : | 482.6mm iadc 537 TCI tricone rock drill bit |
| Certification : | API and ISO standard |
| Price : | bargain |
| Payment Terms : | Western Union, , T/T |
| Supply Ability : | 50PCS /month |
| Delivery Time : | 1 days |

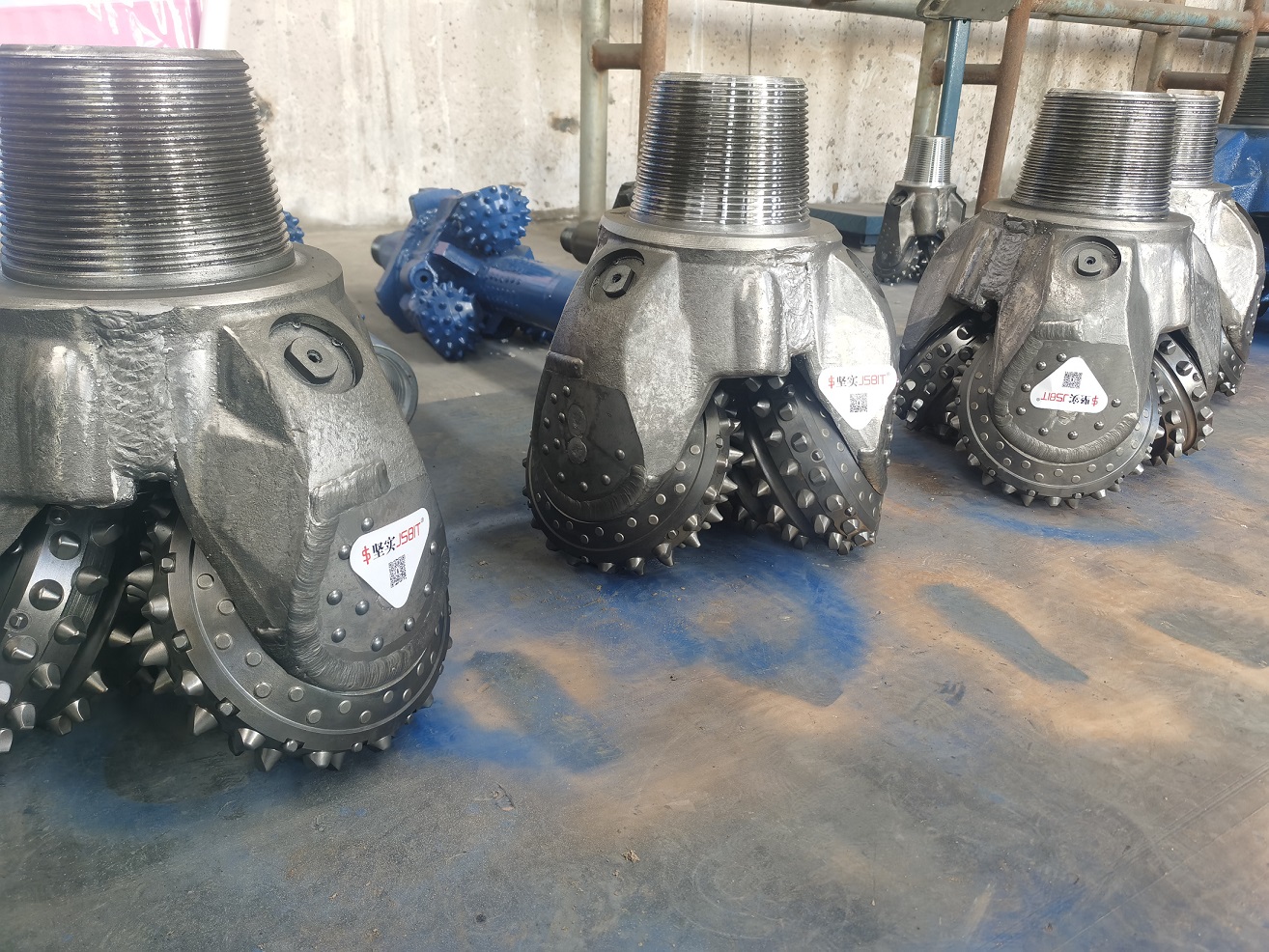

JSBIT tricone bits factory offers all kinds of tricone drill bits. Tricone bits are available in new and used tricone bits , steel tooth and tungsten carbide insert, in sizes from 37/8" to 36", for use in all formations, with any bearing: seal type / air type , tricone bits apply to oil gas geothermy mining water HDD and foundation industry.
| IADC | Recommended parameters | Applicable strata | |
| WOB KN/mm | Rotating speed r/min | ||
| 116,117 | 0.35-0.8 | 150-80 | Extremely soft formations with high compressive strength and drillability, such as clay, mudstone, chalk |
| 126,127 | 0.35-0.9 | 150-70 | Soft formations with high compressive strength and drillability, such as mudstone, gypsum, salt rock, soft shale, soft limestone |
| 136,137 | 0.35-1.0 | 120-60 | Soft to medium-soft formations with high compressive strength and high drillability, such as medium-soft shale, anhydrite, medium-soft limestone, medium-soft sandstone and soft formations with hard interlayers |
| 216,217 | 0.4-1.0 | 100-60 | Soft to medium formations with compressive strength, such as soft shale, medium soft limestone, medium soft sandstone and soft formations with hard interlayers |
| 246,247 | 0.4-1.0 | 80-50 | Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite |
| 417,437,447 | 0.35-0.9 | 150-70 | Very soft formations with high compressive strength and drillability, such as clay, mudstone, chalk, gypsum, salt rock, soft shale, soft limestone |
| 517,527 | 0.35-1.0 | 140-60 | Soft formations with high compressive strength, such as mudstone, gypsum, salt rock, soft shale, soft limestone |
| 537,547 | 0.45-1.0 | 120-50 | Soft to medium formations with compressive strength, such as medium-soft shale, medium-soft limestone, medium-soft sandstone and medium formations with effective hard abrasive interlayers |
| 617,627 | 0.45-1.1 | 90-50 | Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite |
| 637 | 0.5-1.2 | 80-40 | Hard formations with high compressive strength, such as sandstone, limestone, dolomite and anhydrite, marble |
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

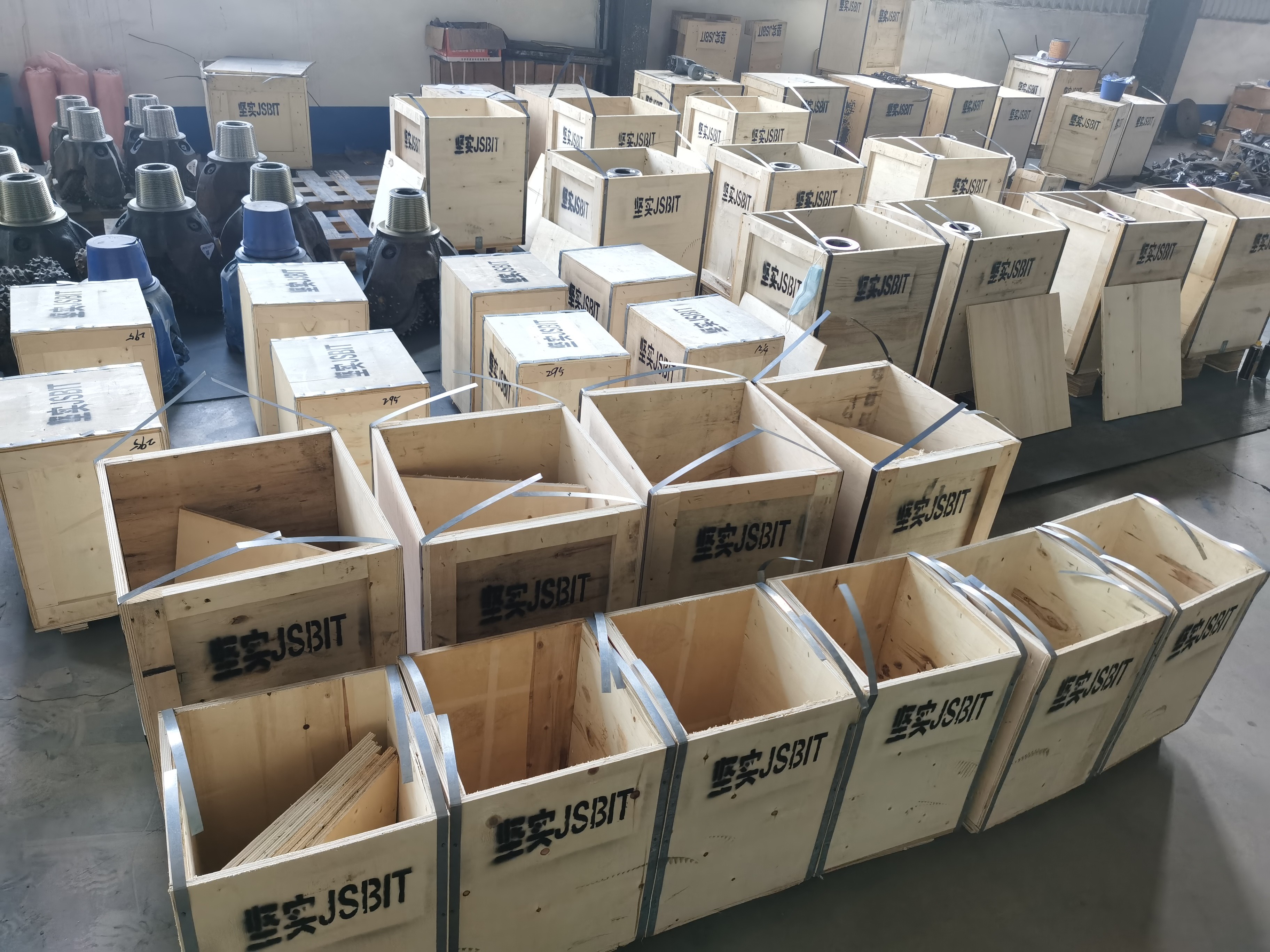

Package:
fumigation free-wooden box and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
fumigation free-wooden box and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests
Transportation:
By air, By Express or By sea according to your requests
For more information, please contact:
Email: cocoyu@jsbit.com.cn
Mobile / WhatsApp / Linkedin / Facebook / Wechat / NO.
+86 13373078300
Website:
Keywords
Tci bit
Trione rock drill bit
Tricone Roller Cone Drill Bits
Tricone Rotary Drill Bits
Tricone Bits,
Tricone Bits Suppliers
Tricone Bits Manufacturers
Related searches for tricone bits tricone drill bits for sale
tricone bit for well drilling
tricone bit weight
used tricone bits
tricone bits for sale
tci tricone bit
hughes tricone bits
tricone drill bit
Tricone Bits Suppliers
Tricone Bits Manufacturers
China Tricone Bits Suppliers
China Tricone Bits Manufacturers
Tricone Bits Suppliers in China
Tricone Bits Manufacturers in China
Tricone Bits
Tricone Bits Suppliers
| Table of classification of formation hardness and bit selection | |||||
| Roller cone bit IADC code | IADC code of diamond bit | Formation description | Rock type | Compressive strength(Mpa) | ROP(m/h) |
| 111/124 | M/S112~M/S223 | Very soft:sticky soft formation with low compressive strength. | Clay Siltstone sandstone |
<25 |
>20 |
| 116/137 | M/S222~M/S323 | Soft:soft formation with low compressive strength and high drillability. | Clay rock Marl Lignite sandstone |
25~50 |
10~20 |
|
417/527 |
M/S323~M/S433 |
Medium soft:soft to medium formation with low compressive strength and steak. | Clay rock Marl Lignite Sandstone Siltstone Anhydrite Tuff |
50~75 |
5~15 |
| 517/537 | M322~M443 | Medium:medium to hard formation with high compressive strength and thin abrasive streak. | Mudstone Dark rock shale | 75~100 | 2~6 |
| 537/617 | M422~M444 |
Medium hard:hard and dense formation with high compressive strength and medium abrasiveness. | Dark rock Hard shale Anhydrite Sandstone Dolomite | 100~200 | 1.5~3 |
| IADC CODE SELECTION | |||
| IADC | WOB | RPM | Application |
| (KN/mm) | (r/min) | ||
| 111/114/115 | 0.3-0.75 | 200-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 116/117 | 0.35-0.8 | 150-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 121 | 0.3-0.85 | 200-80 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 124/125 | 180-60 | ||
| 131 | 0.3-0.95 | 180-80 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 136/137 | 0.35-1.0 | 120-60 | |
| 211/241 | 0.3-0.95 | 180-80 | medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds. |
| 216/217 | 0.4-1.0 | 100-60 | |
| 246/247 | 0.4-1.0 | 80-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
| 321 | 0.4-1.0 | 150-70 | medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble |
| 324 | 0.4-1.0 | 120-50 | |
| 437/447/435 | 0.35-0.9 | 240-70 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone |
| 517/527/515 | 0.35-1.0 | 220-60 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 537/547/535 | 0.45-1.0 | 220-50 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 617/615 | 0.45-1.1 | 200-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
| 637/635 | 0.5-1.1 | 180-40 | hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble |
| Note: Above limits of WOB and RRPM should not be used simultaneously | |||
- Strong brand and manufacture factory
- Find a distributor in each country
- API&ISO standard
- Large stock and fast delviery
Contact:
|
|
