    API HDD Pilot Bit IADC417 Horizontal Directional Drilling Bits

    Ask Lasest Price
    Brand Name : JS
    Price : bargain
    Supply Ability : The construction period of a HHD reamer is 5-7 days
    Delivery Time : 15 days -30 days.
    • Product Details
    • Company Profile

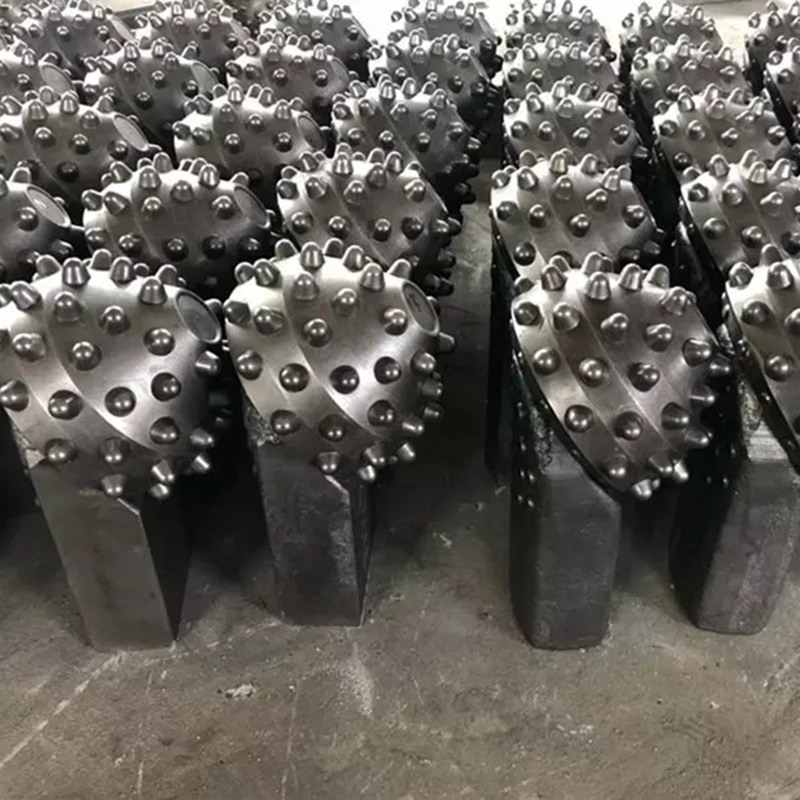

    API HDD Pilot Bit IADC417 Horizontal Directional Drilling Bits

    API HDD Directional Bit For Horizontal Directional Drilling



    Product Description

    We have a wide selection of HDD bits, such as milled guided bits for loose and loose formations. These guide bits feature optimized tip protection, beveled hard metal, and cone inner rows to withstand the harsh drilling conditions often encountered in HDD applications.


    IADC
    WOB(kN/mm)
    RPM (r/min)
    Suitable formation
    417
    0.35~0.90
    140~70
    Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
    437
    0.35~0.95
    140~60
    Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
    517
    0.35~1.05
    120~50
    Soft with low compressive strength and high drillability,such as shale,clay,sandstone and soft limestone,etc.
    637
    0.70~1.20
    70~40
    Medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite, sandstone and chert.ect.
    Note:The upper limits of WOB and RPM in above table should not be used simultaneously.
    Product Advantage

    1. Wear protection of drill body and seal assembly.

    2. Longer drilling duration with more durable cutting structure.

    3. Allow deeper drilling without damaging the grease seal.

    4. Higher carrying capacity.

    About Us

    API HDD Pilot Bit IADC417 Horizontal Directional Drilling Bits


    The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.


    Usage Scenarios
    Production Process
    Transport
    F&Q

    1. Who are we?

    We are headquartered in Hebei, China, and have been selling worldwide since 2019.


    2. How can we guarantee the quality?

    Pre-production samples are always used before mass production;

    Always carry out final inspection before shipment;


    3. What can you buy from us?

    Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment


    4. Why buy from us instead of other suppliers?

    The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
